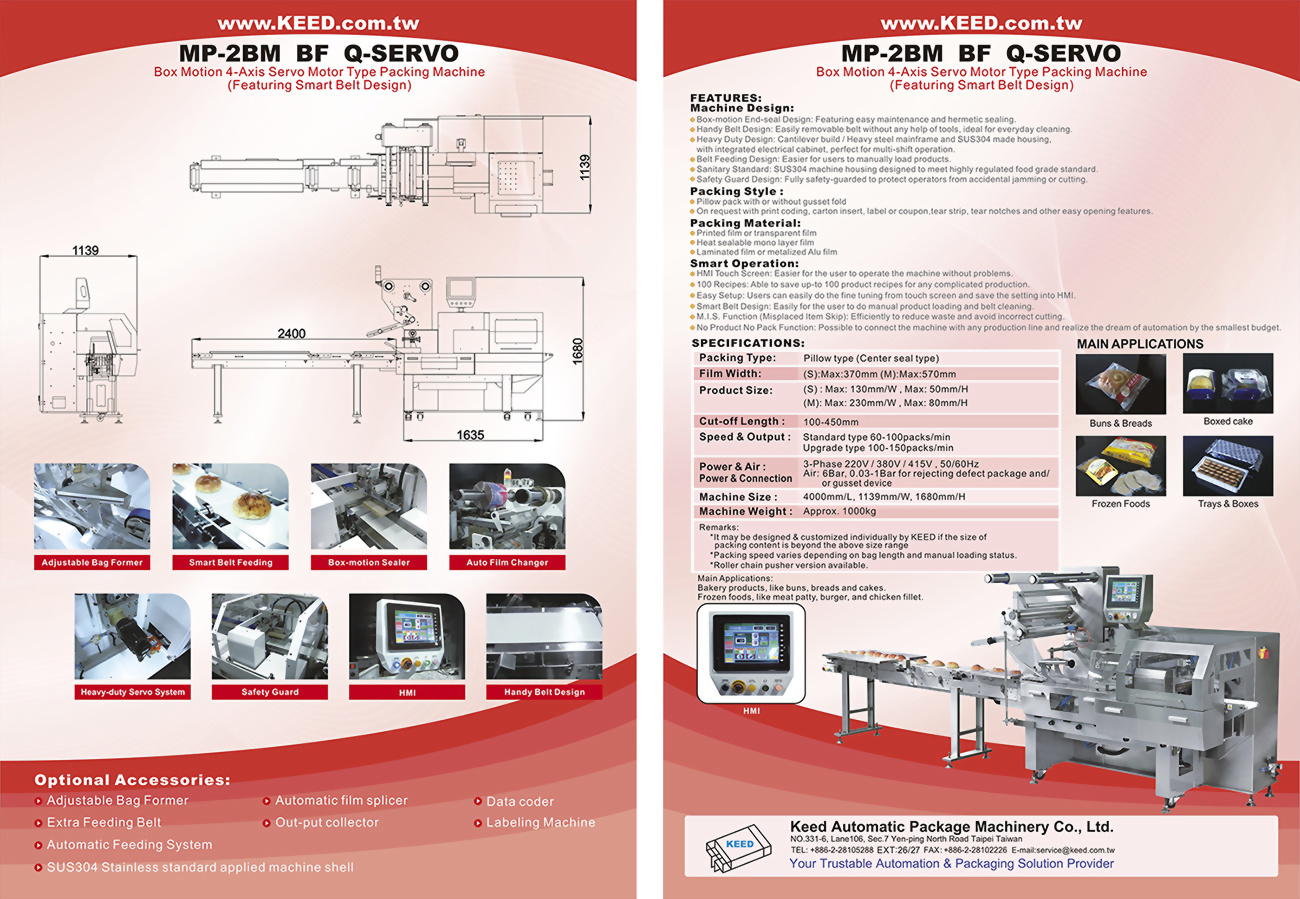

• Horizontal Flow Wrapper

MP-2BM BF Q-SERVO


FEATURES:

Machine Design:

  • Box-motion End-seal Design: Featuring easy maintenance and hermetic sealing.
  • Handy Belt Design: Easily removable belt without any help of tools, ideal for everyday cleaning.
  • Heavy Duty Design: Cantilever build / Heavy steel mainframe and SUS304 made housing, with integrated electrical cabinet, perfect for multi-shift operation.
  • Belt Feeding Design: Easier for users to manually load products.
  • Sanitary Standard: SUS304 machine housing designed to meet highly regulated food grade standard.
  • Safety Guard Design: Fully safety-guarded to protect operators from accidental jamming or cutting.

Packaging Style:

  • Pillow pack with or without gusset fold On request with print coding, carton insert, label or coupon, tear strip, tear notches and other easy opening features.

Packaging Material:

  • Printed film or transparent film.
  • Heat sealable mono layer film.
  • Laminated film or metalized Alu film.

Smart Operation:

  • HMI Touch Screen: Easier for the user to operate the machine without problems.
  • 100 Recipes: Able to save up-to 100 product recipes for any complicated production.
  • Easy Setup: Users can easily do the fine tuning from touch screen and save the setting into HMI.
  • Smart Belt Design: Easily for the user to do manual product loading and belt cleaning.

OPTIONAL ACCESSORIES:

  • Adjustable Bag Former
  • Extra Feeding Belt
  • Automatic Feeding System
  • SUS304 Stainless standard applied machine shell
  • Automatic film splicer
  • Out-put collector
  • Data coder
  • Labeling Machine
Packing Type : Pillow type or Center-sealed type.
Film Width : Small:Max.370mm, Medium:Max.570mm, Large:Max.770mm
Product Size : Small:Max.130mm/W, Max:50mm/H
Medium:Max:230mm/W, Max:80mm/H
Large:Max:330mm/W, Max:110mm/H
Speed & Output 60~100 packs/min
Cut Off Length 100-450mm
Power & Air: Voltage:3-Phase 220V / 380V / 415V, 50/60Hz
Air pressure required:0.5Mpa
Machine Size & Weight 4035mm/L, 1139mm/W, 1680mm/H
Approx. 850kg
Remark:
  • It may be designed & customized individually by KEED if the size of packing content is beyond the above size range.
  • Packing speed varies depending on bag length and manual loading status.
  • Roller chain pusher version available.

MAIN APPLICATIONS

Bakery products Frozen foods
like buns, breads and cakes. like meat patty, burger, and chicken fillet.
